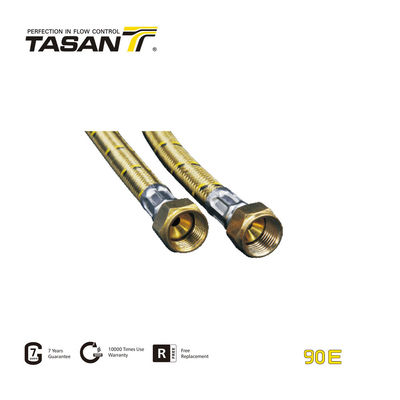

Vinyl Braided Ss Flexible Pipe Stainless Steel Flexible Gas Line ISO228 Thread 90E

Product Details:
Place of Origin: China
Brand Name: TASAN
Model Number: 90E
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs Per Week
Contact Us    PDF Download

det1

Product Name: Stainless Steel Flexible Hose-Vinyl Braided Gas Hose Body Material: 304 S.S. Braided Hose
Nut Material: Brass Inner Pipe Material: EPDM Rubber
Seal Material: EPDM Rubber Gasket Length: 10cm To 200cm
Working Temperature Min./MaxFrom 0 ℃ To +80 ℃ (From 32℉ To 176℉).: 65℃ Maximum Inlet Pressure: ＜2.4 Mpa/350 Psi
Thread: ISO 228 「equivalent To DIN EN 10226-1 And BS21」 Working Medium: Water, Noncorrosive Liquid, Saturated Stem, Air
High Light: Vinyl Braided Ss Flexible Pipe, Stainless Steel Flexible Gas Line ISO228 Thread, Ss Flexible Pipe ISO228 Thread

det2

Product Description
90E Stainless Steel Flexible Hose-Vinyl Braided Gas Hose
Vinyl Braided Ss Flexible Pipe Stainless Steel Flexible Gas Line ISO228 Thread 90E 0
90C series Stainless Steel Flexible Hose is the excellent quality design for High-low temperature & High pressure conditions, suitable for domestic and commercial plumbing system, industrial application, sanitary, heating & air-condition system, pneumatic systems, used for non aggressive fluid only.

Specification

● F3/8" × F3/8"
● F5/16" × F5/16"

Technical Data

● Working pressure: ＜2.4 Mpa/350 psi
● Maximum temperature: 65℃
● A. Nut, brass
● B. Brass insert
● C. Stainless steel ferrule
● D. Vinyl braided hose
● E. NBR
Threads: ISO 228「equivalent to DIN EN 10226-1 and 8S21」
The thread,  materials, etc. can be customized.

det3

Vinyl Braided Ss Flexible Pipe Stainless Steel Flexible Gas Line ISO228 Thread 90E 1
Application
Hoses which connect gas source and gas appliance.
