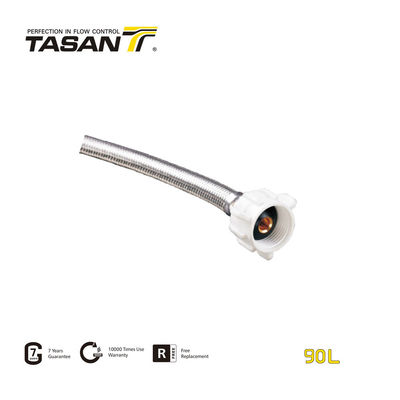

Rustproof Flexible Toilet Hose Flexible Stainless Steel Tubing 10cm -200cm 90L

Product Details:
Place of Origin: China
Brand Name: TASAN
Model Number: 90L
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs Per Week
Contact Us    PDF Download

det1

Product Name: Stainless Steel Flexible Hose-Toilet Hose Body Material: 304 S.S. Braided Hose
Nut Material: Brass Inner Pipe Material: EPDM Rubber
Seal Material: EPDM Rubber Gasket Length: 10cm To 200cm
Working Temperature Min./MaxFrom 0 ℃ To +80 ℃ (From 32℉ To 176℉).: 90℃ Maximum Inlet Pressure: 1.6 Mpa/230 Psi
Thread: ISO 228 「equivalent To DIN EN 10226-1 And BS21」 Working Medium: Water, Noncorrosive Liquid, Saturated Stem, Air
High Light: Flexible Stainless Steel Tubing 10cm, Rustproof Flexible Toilet Hose, Flexible Toilet Hose 200cm

det2

Product Description

90L Stainless Steel Flexible Hose-Toilet Hose
90L series Stainless Steel Flexible Hose is the excellent quality design for High-low temperature & High pressure conditions, suitable for domestic and commercial plumbing system, industrial application, sanitary, heating & air-condition system, pneumatic systems, used for non aggressive fluid only.

Specification
● 1/2"FIP × 7/8"BC
● 3/8"COMP × 7/8"BC

Technical Data
● Working pressure: 1.6 Mpa/230 psi
● Maximum temperature: 90℃

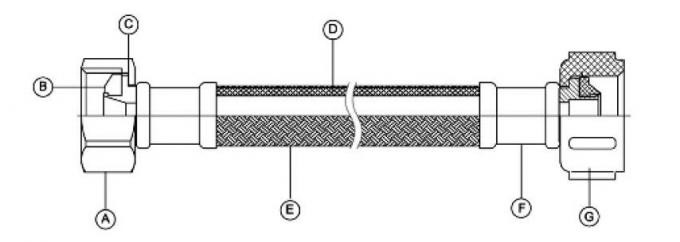

● A. Nut, nickel-plated brass
● B. EPDM rubber washer
● C. Brass insert
● D. EPDM rubber
● E. Stainless steel AISI 304
● F. Stainless steel AISI ferrule
● F. ABS Plastic nut
Threads: ISO 228「equivalent to DIN EN 10226-1 and 8S21」
The thread,  materials, etc. can be customized.

det3


Application
Hoses which connect gas cylinders.
