Length 10cm To 200cm Stainless Steel Flexible Hose For Saturated Steam 90B

Product Details:
Place of Origin: China
Brand Name: TASAN
Model Number: 90B
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs Per Week
Contact Us    PDF Download

det1

Product Name: Stainless Steel Flexible Hose Body Material: 304 S.S. Braided Hose
Nut Material: Brass Inner Pipe Material: EPDM Rubber
Seal Material: EPDM Rubber Gasket Length: 10cm To 200cm
Working Temperature Min./MaxFrom 0 ℃ To +80 ℃ (From 32℉ To 176℉).: -10 ℃ To +90 ℃ Maximum Inlet Pressure: 1.6 Mpa/230 Psi
Thread: ISO 228 「equivalent To DIN EN 10226-1 And BS21」 Working Medium: Water, Noncorrosive Liquid, Saturated Stem, Air
High Light: 200cm Stainless Steel Flexible Hose, Saturated Steam Stainless Steel Flexible Hose, 200cm flexible steam hose

det2

Product Description

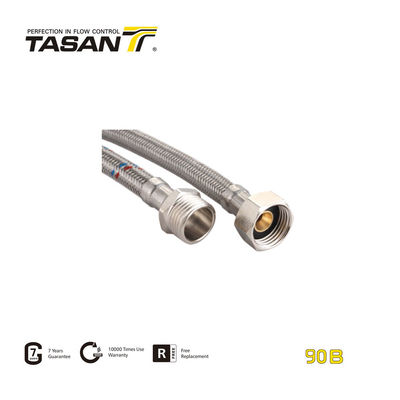

90B Stainless Steel Flexible Hose
Length 10cm To 200cm Stainless Steel Flexible Hose For Saturated Steam 90B 0
90B series Stainless Steel Flexible Hose is the excellent quality design for High-low temperature & High pressure conditions, suitable for domestic and commercial plumbing system, industrial application, sanitary, heating & air-condition system, pneumatic systems, used for non aggressive fluid only.

Specification
● F1/2" × M8×1 F3/8" × M8×1
● F1/2" × M10×1 F3/8" × M10×1
● F1/2" × M12×1 F3/8" × M12×1

Technical Data
● Working pressure: 1.6 Mpa/230 psi
● Maximum temperature: 90℃
● A. Nut, nickel-plated brass
● B. EPDM rubber washer
● C. Brass insert
● D. EPDM rubber
● E. Stainless steel AISI 304
● F. Stainless steel ferrule
● G. O-ring
● H. Nickel-plated brass
Threads: ISO 228「equivalent to DIN EN 10226-1 and 8S21」

det3

Length 10cm To 200cm Stainless Steel Flexible Hose For Saturated Steam 90B 1

Application

Direct connection to mixers for bath and kitchen.
