  • detail of ISO228 Thread SS304 Stainless Steel Flexible Hose Gas Hose Flexible Pigtails
  • detail of ISO228 Thread SS304 Stainless Steel Flexible Hose Gas Hose Flexible Pigtails

ISO228 Thread SS304 Stainless Steel Flexible Hose Gas Hose Flexible Pigtails

Product Details:
Place of Origin: China
Brand Name: TASAN
Model Number: 90F
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs Per Week
Contact Us    PDF Download

det1

Product Name: Stainless Steel Flexible Hose-Pigtail Body Material: 304 S.S. Braided Hose
Nut Material: Brass Inner Pipe Material: EPDM Rubber
Seal Material: EPDM Rubber Gasket Length: 10cm To 200cm
Working Temperature Min./MaxFrom 0 ℃ To +80 ℃ (From 32℉ To 176℉).: 65℃ Maximum Inlet Pressure: ＜2.4 Mpa/350 Psi
Thread: ISO 228 「equivalent To DIN EN 10226-1 And BS21」 Working Medium: Water, Noncorrosive Liquid, Saturated Stem, Air
High Light: ISO228 Thread Stainless Steel Flexible Hose, ISO228 Thread Gas Hose Flexible Pigtails, SS304 Stainless Steel Flexible Hose

det2

Product Description

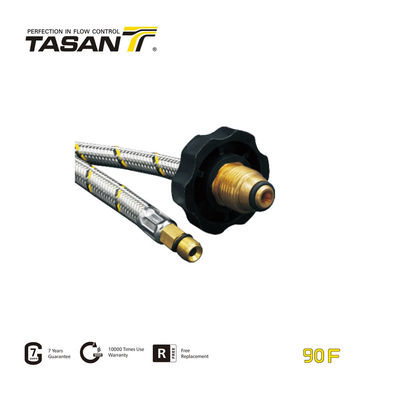

90F Stainless Steel Flexible Hose-Pigtail

90F series Stainless Steel Flexible Hose is the excellent quality design for High-low temperature & High pressure conditions, suitable for domestic and commercial plumbing system, industrial application, sanitary, heating & air-condition system, pneumatic systems, used for non aggressive fluid only.

Specification
●5/16"M × 7/8"lzq.c

Technical Data
● Working pressure: ＜2.4 Mpa/350 psi
● Maximum temperature: 60℃

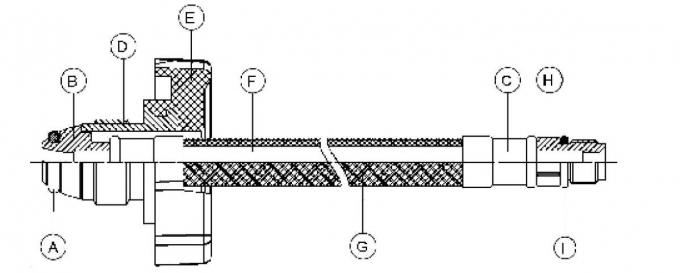

● A. Brass
● B. Stainless steel ferrule
● C. Stainless steel AISI 304
● D. Thermoplastic
● E. Brass
● F. Neoprene
Threads: ISO 228「equivalent to DIN EN 10226-1 and 8S21」
The thread,  materials, etc. can be customized.

det3


Application
Hoses which connect gas cylinders.
