Product Description

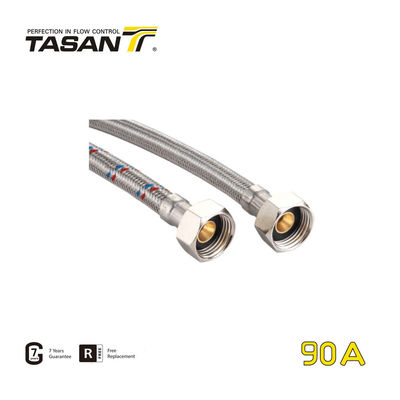

90A Stainless Steel Flexible Hose
90A series Stainless Steel Flexible Hose is the excellent quality design for High-low temperature & High pressure conditions, suitable for domestic and commercial plumbing system, industrial application, sanitary, heating & air-condition system, pneumatic systems, used for non aggressive fluid only.
Specification
● F1/2" × F1/2"F3/4" × F1/2"
● F3/8" × F3/8"F3/4" × F3/4"
● 1/2" FIP × 1/2" FIP ½ " FIP × 3/8" COM
Technical Data
● Working pressure: 1.6 Mpa/230 psi
● Maximum temperature: 90℃
● A. Nut, nickel-plated brass
● B. EPDM rubber washer
● C. Brass insert
● D. EPDM rubber
● E. Stainless steel AISI 304
● F. Stainless steel ferrule
Threads: ISO 228「equivalent to DIN EN 10226-1 and 8S21」
Application
Direct connection to mixers for bath and kitchen.
