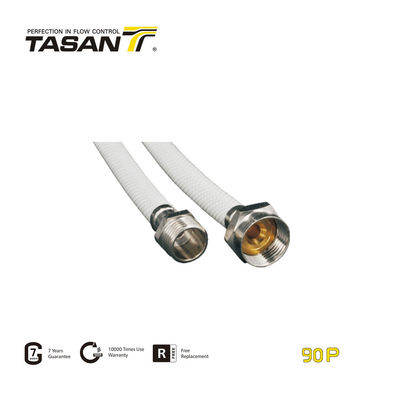

1.0Mpa 150psi Stainless Steel Flexible Pipe Reinforced Braided Pvc Hose 90P

Product Details:
Place of Origin: China
Brand Name: TASAN
Model Number: 90P
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs Per Week
Contact Us    PDF Download

det1

Product Name: Stainless Steel Flexible Hose-Reinforced PVC Hose Body Material: 304 S.S. Braided Hose
Nut Material: Brass Inner Pipe Material: EPDM Rubber
Seal Material: EPDM Rubber Gasket Working Temperature Min./MaxFrom 0 ℃ To +80 ℃ (From 32℉ To 176℉).: 75℃
Maximum Inlet Pressure: 1.0 Mpa/150 Psi Thread: ISO 228 「equivalent To DIN EN 10226-1 And BS21」
Working Medium: Water, Noncorrosive Liquid, Saturated Stem, Air
High Light: 150psi Stainless Steel Flexible Pipe, 1.0Mpa Stainless Steel Flexible Pipe, 1.0Mpa Reinforced Braided Pvc Hose

det2

Product Description

90P Stainless Steel Flexible Hose-Reinforced PVC Hose

90Pseries Stainless Steel Flexible Hose is the excellent quality design for High-low temperature & High pressure conditions, suitable for domestic and commercial plumbing system, industrial application, sanitary, heating & air-condition system, pneumatic systems, used for non aggressive fluid only.

 Specification
● F1/2" × M1/2"
● F7/8" × M1/2"

Technical Data
● Working pressure: 1.0 Mpa/150 psi
● Maximum temperature: 75℃

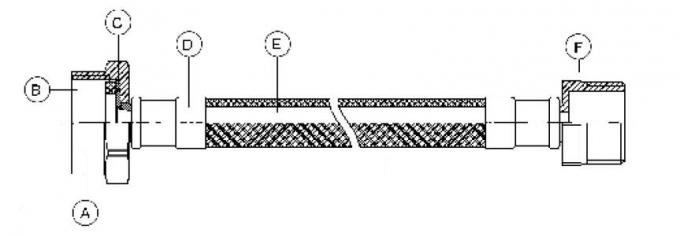

● A. Nut, nickel-plated brass
● B. EPDM rubber washer
● C. Brass insert
● D. PVC braided hose
● E. Stainless steel AISI 304 ferrule
● F. Plastic nut
Threads: ISO 228「equivalent to DIN EN 10226-1 and 8S21」
The thread,  materials, etc. can be customized.

det3


Application
Sanitary installations: wash-basins, bidets, WC suites.
