Home / Product / Brass Gas Valve / Nickel Plated Forged 1/4 Inch Brass Gas Valve Full Flow DN8~25mm 35B
  • detail of Nickel Plated Forged 1/4 Inch Brass Gas Valve Full Flow DN8~25mm 35B
  • detail of Nickel Plated Forged 1/4 Inch Brass Gas Valve Full Flow DN8~25mm 35B

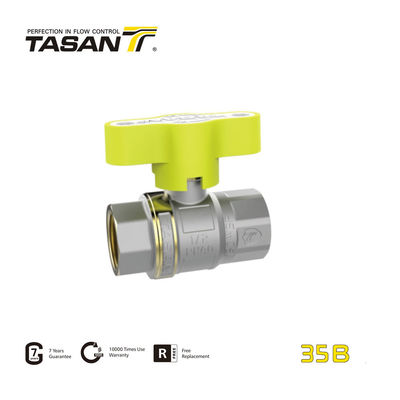

Nickel Plated Forged 1/4 Inch Brass Gas Valve Full Flow DN8~25mm 35B

Product Details:
Place of Origin: China
Brand Name: TASAN
Certification: CE
Model Number: 35B

Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs Per Week
Contact Us    PDF Download

det1

Product Name: Brass Gas Ball Valve, Full Flow Material: Brass
Port Size: 1/4"-1" Connection Type: Female X Male
Working Temperature Min./Max.: –20°C ~60°C (-4°F~140°F) Pressure Rating:: PN5/72.5psi -- 1/4"~1" (DN8~25mm)
Thread: Female Threads: ISO 7/1 Rp Parallel ; Male Threads: ISO 7/1 R Taper Power: Manual
High Light: Brass Gas Valve DN8, Nickel Plated 1/4 Brass Gas Valve, Nickel Plated 1 4 inch gas valve

det2

Product Description
35B Brass Gas Ball Valve, Full Flow

35 series Gas BV is the excellent quality design in accordance with the European standard EN 331: 1998,suitable for the gas of Natural gas,Town gas and Liquid gas.

● Pressure rating:
PN5/72.5psi -- 1/4"~1" (DN8~25mm)

● Working temperature Min./Max.:
–20°C ~60°C (-4°F~140°F)

● Descriptions:
Nickel-plated Forged brass body
Chrome-plated Machined brass/S.S. Ball
Full Flow opening
TASAN Blowout-proof stem - Minimal 10000 times of use
Designed with adjustable gland and EPDM O-ring(1/2"~4")
Male threads: ISO 7/1 R taper
Female threads: ISO 7/1 Rp parallel

det3

Nickel Plated Forged 1/4 Inch Brass Gas Valve Full Flow DN8~25mm 35B 0
Structure Charts
Part Code Size A/mm B/mm C/mm
35BNS301 1/4’’ 42 38 52
35BNS302 3/8’’ 42 39 52
35BNS303 1/2’’ 55 41 52
35BNS304 3/4’’ 61 46 56
35BNS305 1’’ 74 50 62

1 Body High-density Forged Brass
2 Seats Pure PTFE (Polytetrafluoroethylene)
3 Ball Forged Brass/S.S.*
4 Body Cap Forged Brass
5 Stem Machined Brass Rod/S.S.*
6 O-ring EPDM 70 Shore
7 Gland Packing Pure PTFE (Polytetrafluoroethylene)
8 Gland Machined Brass Rod
9 Lever Handle Z.P. Steel Varnished, PVC Sleeve
10 Screw Nut Stainless Steel
11 T Handle Aluminum
12 Name Plate POM
13 Handle Screw Nickel-plated Steel
The thread, color of handle, materials, etc. can be customized.
