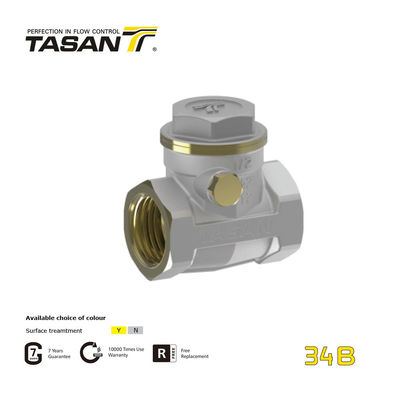

ISO228 Threads 1 Inch Brass Swing Check Valve Female X Female Excellent Sealing

Product Details:
Place of Origin: China
Brand Name: TASAN
Model Number: 34B

Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs Per Week
Contact Us    PDF Download

det1

Product Name: Brass Swing Check Valve Non Soft Sealing Material: Brass
Flap: Brass Port Size: 3/8"-4"
Connection Type: Female Working Temperature Min./Max.: -4°F-248° F In Absence Of Steam
Pressure Rating:: 232 Psi Thread: ISO 228 「equivalent To DIN EN 10226-1 And BS21」
Power: Manual
High Light: ISO228 Threads Brass Swing Check Valve, Brass Swing Check Valve excellent sealing, ISO228 1 brass check valve

det2

Product Description

34B  Brass Swing Check Valve Non Soft Sealing
34B series Brass Swing Check Valve is super-design.suitable for domestic and commercial plumbing system, industrial application, sanitary, heating.waterworks used for non aggressive fluid only.

● Descriptions:
Available Size: 3/8'' ~ 4''
Forged brass body in chrome-plated
Pressure rating:16 Bar(232 Psi)
Working temperature Min./Max.: -20°~120°(-4°F-248° F) in absence of steam
Threads:ISO228(equivalent to DIN259 and BS2779)
The thread, materials, etc. can be customized.

Brass Valve Body: High-density forging, no blister, no air holes, no leakage. Made by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakage. Made by special high precision CNC machines.
Brass Flap: With hard sealing structure, is not easy to abrade after long-term use, with excellent sealing performance, and can be used in various environments.
