Female X Female 2 Inch Brass Swing Check Valve 16Bar Horizontal Non Soft Sealing

Product Details:
Place of Origin: China
Brand Name: TASAN
Model Number: 34A

Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs Per Week
Contact Us    PDF Download

det1

Product Name: Brass Swing Check Valve Material: Brass
Flap: Brass Port Size: 3/8"-4"
Connection Type: Female Working Temperature Min./Max.: -20°~120° In Absence Of Steam
Pressure Rating:: 16 Bar Thread: ISO 228
Power: Manual
High Light: Brass Swing Check Valve 16Bar, Female X Female brass swing valve, brass water check valve 16Bar

det2

Product Description

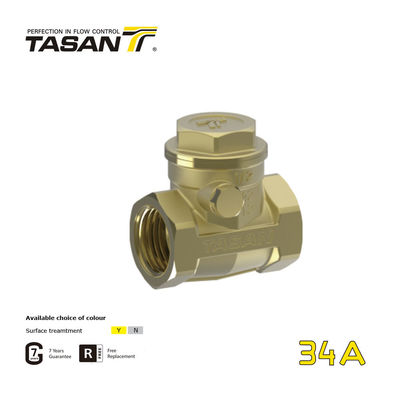

34A  Brass Swing Check Valve Non Soft Sealing Female x Female
34A series Brass Swing Check Valve is super-design.suitable for domestic and commercial plumbing system, industrial application, sanitary, heating.waterworks used for non aggressive fluid only.

● Descriptions:
Available Size: 3/8'' ~ 4''
Forged brass body in brass-self colour
Pressure rating:16 Bar(232 Psi)
Working temperature Min./Max.: -20°~120°(-4°F-248° F) in absence of steam
Threads:ISO228(equivalent to DIN259 and BS2779)
The thread, materials, etc. can be customized.

Brass Valve Body: High-density forging, no blister, no air holes, no leakage. Made by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakage. Made by special high precision CNC machines.
Brass Flap: With hard sealing structure, is not easy to abrade after long-term use, with excellent sealing performance, and can be used in various environments.
