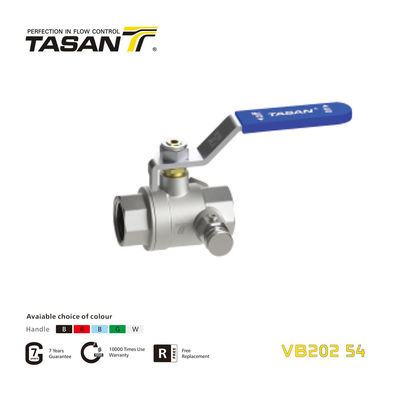

VB202 54 Brass Ball Valve With Drain Cock Female x Female 362.5 Psi

Product Details:
Place of Origin: China
Brand Name: TASAN
Certification: CE
Model Number: VB202 54
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs Per Week
Contact Us    PDF Download

det1

Product Name: Brass Ball Valve With Drain Cock Material: Brass
Port Size: 1/2''~1'' Power: Manual
Pressure Rating:: 362.5 Psi Connection Type: Female X Female
Handle Type: Lever Handle Handle Material: Iron Or Steel
Ball Seat: PTFE Opening/Closing Test: 10,000 Times
Thread: DIN EN 10226-1 And BS21 Working Temperature Min./Max.: From -10 ℃ To +120 ℃

det2

Product Description

VB202 54  Brass Ball Valve With Drain Cock Female x Female 25Bar

Descriptions:
Nickel-plated Forged brass body
Chrome-plated Machined brass/S.S. ball *
Available Size: 1/2''~1''
Pressure rating: 25 Bar(362.5 Psi)
Handle: Iron Or Steel Lever Handle
Working temperature Min./Max.: From -10 ℃ To +120 ℃ (from 14℉ To 248℉)
Opening/closing Test : 10,000 times
Threads: ISO 228「equivalent to DIN EN 10226-1 and BS21」
The thread, color of handle, materials, etc. can be customized.

Part Code Size Working Prssuer Bar Pcs/Carton
VB20254N203 1/2'' 25 80
VB20254N204 3/4'' 25 60
VB20254N205 1'' 25 40
Details
​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Valve Ball: Smooth and wear resisiting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
O-ring: EPDM & NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.
Handle Screw Nut: TASAN Professional-Antirust handles with S.S. handle screw

det3
