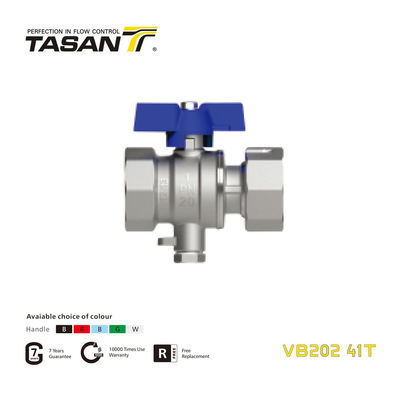

VB202 41T Brass TSP Ball Valve With Swivel Nut And Butterfly Aluminium Handle PN 20Bar

Product Details:
Place of Origin: China
Brand Name: TASAN
Certification: CE
Model Number: VB202 41T
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs Per Week
Contact Us    PDF Download

det1

Product Name: Brass TSP Ball Valve With Swivel Nut Material: Brass
Connection Type: Female X Female Available Size: 3/4''x 3/4''; 1''x1''
Handle Type: T Type Handle Material: Aluminium
Ball Seat: PTFE Working Pressure: 20Bar
Power: Manual Opening/Closing Test: 10,000 Times
Working Temperature Min./Max.: From -10 ℃ To +120 ℃ Thread: ISO 228「equivalent To DIN EN 10226-1 And BS21」

det2

Product Description

VB202 41t  Brass TSP Ball Valve With Swivel Nut

● Descriptions:
Nickel-plated Forged brass body
Chrome-plated Machined brass/S.S. ball *
Available Size: 3/4''x 3/4''; 1''x1''
Pressure rating: 20Bar
Handle: Butterfly Aluminium Handle
Working temperature Min./Max.: From -10 ℃ To +120 ℃ (from 14℉ To 248℉)
Opening/closing Test: 10,000 times
Chain: Iron with nickel plated; Brass with nickel plated available as well.
Outlet: Brass; Stainless Steel available as well.
Threads: ISO 228「equivalent to DIN EN 10226-1 and BS21」
The thread, color of handle, materials, etc. can be customized.

det3

Part Code Size Working Prssuer Bar Pcs/Carton
VB20241N204T 3/4’’ x 3/4'' 20 80
VB20241N205T 1’’ x 1'' 20 60
Details

​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by advanced high precision CNC machines.
Valve Ball: Smooth and wear resisiting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easily aging.
O-ring: EPDM & NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.
Handle Screw Nut: TASAN Professional-Antirust handles with S.S. handle screw
