Product Description

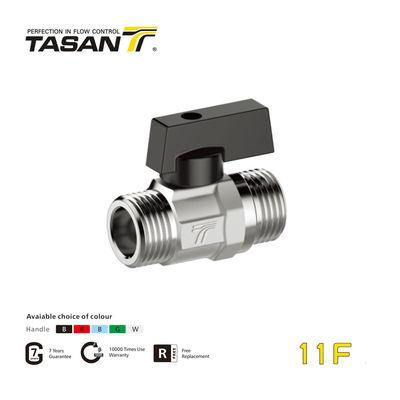

11F Brass Ball Valve Water Minin Ball Valve PN25 Bar Male X Male
Technical Standard
Item: 12F Brass Water Minin Ball Valve
Nominal Pressure: 25 Bar(362.5 Psi)
Working temperature Min./Max. From -0℃ To +90℃
Threads: ISO 228(equivalent to DIN259 and BS2779)
Structure: Ball
Size: 1/4’’ ~ 3/4’’
Material: Brass or can be customized
Handle Material: Aluminum
Handle Type: L handle
Connection Type: Male x Male
*The thread, color of handle, materials, etc. can be customized.
Details
Brass Valve Body: High density forging, no blister, no air holes, no leakages. Made by special highprecision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precisionCNC machines.
Valve Ball: Smooth and wear resisting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use withoutdeformation, fracture.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is noteasy aging.
Handle: Aluminum L Handle Plated with paint, the surface is coated against corrosion, the coating is thickened,comfortable using.
O-ring: NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easyto leak.
