Home / Product / Brass Ball Valve / S161 96A Brass Boiler Ball Valve Male ISO 228 Thread 16 Bar , 3/8''~1/2''
  • detail of S161 96A Brass Boiler Ball Valve Male ISO 228 Thread 16 Bar , 3/8''~1/2''
  • detail of S161 96A Brass Boiler Ball Valve Male ISO 228 Thread 16 Bar , 3/8''~1/2''

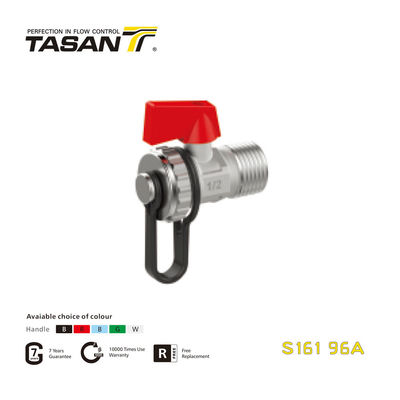

S161 96A Brass Boiler Ball Valve Male ISO 228 Thread 16 Bar , 3/8''~1/2''

Product Details:
Place of Origin: China
Brand Name: TASAN
Certification: CE
Model Number: S161 96A
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs Per Week
Contact Us    PDF Download

det1

Product Name: Brass Boiler Ball Valve Male ISO 228 Thread 25Bar Material: Brass
Port Size: 3/8''~1/2'' Working Temperature Min./Max.: From -10 ℃ To +120 ℃ (from 14℉ To 248℉)
Pressure Rating: 16 Bar(232 Psi) Thread: ISO 228「equivalent To DIN EN 10226-1 And BS21」
Power: Manual

det2

Product Description
S616 96A  Brass Boiler Ball Valve Male ISO 228 Thread 16 Bar
● Descriptions:
Nickel-plated Forged brass body
Chrome-plated Machined brass/S.S. ball *
Available Size: 3/8''~1/2"
Pressure rating: 16Bar
Working temperature Min./Max.: From -10 ℃ To +120 ℃ (from 14℉ To 248℉)
Threads: ISO 228「equivalent to DIN EN 10226-1 and BS21」
The thread, color of handle, materials, etc. can be customized.

det3

Part Code Size Working Prssuer Bar Pcs/Carton
S16196N302A 3/8’’ 16 240
S16196N303A 1/2’’ 16 240


Details
​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Valve Ball: Smooth and wear resisiting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
O-ring: NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.
Chain: Iron with nickel plated; Brass with nickel plated available as well.
Outlet: Brass; Stainless Steel available as well.
