CE Plumbing Systems 1.5 Inch Brass Ball Valve ISO 228 Threaded

Product Details:
Place of Origin: China
Brand Name: TASAN
Certification: CE
Model Number: 15D

Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs Per Week
Contact Us    PDF Download

det1

Product Name: Brass Ball Valve Material: Brass
Port Size: 1/4"-11/4" Connection Type: Female X Male
Working Temperature Min./Max.: –20°C ~150°C (-4°F~302°F) In Absence Of Steam Pressure Rating:: PN40/600psi -- 1/4"~1";PN25/360psi --11/4"~2" (DN32~50mm)
Thread: ISO 228「equivalent To DIN EN 10226-1 And BS21」 Power: Manual
High Light: CE 1.5 Inch Brass Ball Valve, Plumbing Systems Brass Ball Valve, Plumbing Systems Ball Valve Threaded

det2

Product Description

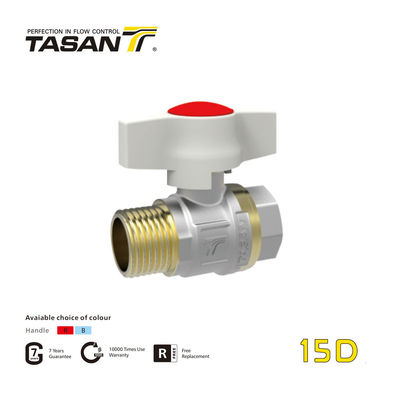

15D Brass Water Ball Valve, Full Flow

15 series BV is the excellent quality design for High-low temperature & High pressure conditions, suitable for domestic and commercial plumbing system, industrial application, sanitary, heating & air-condition system, pneumatic systems, waterworks, oil pipelines, gasoline network, saturated steam, used for non-aggressive fluid only.

Pressure rating:
PN40/600psi -- 1/4"~1" (DN8~25mm)
PN25/360psi --11/4"~2" (DN32~50mm)

Working temperature Min./Max.:
–20°C ~150°C (-4°F~302°F) in absence of steam

Descriptions:
Full Flow(1/4 turn to open and close)
Nickel-plated Forged brass body
Chrome-plated Machined brass/S.S. ball *
Double 0-ring safe stem -PTFE ball seats(1/4" and 3/8")
TASAN Blowout-proof stem - Minimal 10000 times of use
Designed with adjustable gland and EPDM O-ring(1/2"~4")
TASAN Professional-Antirust handles with S.S. handle screw
Threads: ISO 228「equivalent to DIN EN 10226-1 and BS21」

det3

CE Plumbing Systems 1.5 Inch Brass Ball Valve ISO 228 Threaded 0
Structure Charts
Part Code Size A/mm B/mm C/mm
15DNS301 1/4’’ 39 35 52
15DNS302 3/8’’ 40 35 52
15DNS303 1/2’’ 45 37 52
15DNS304 3/4’’ 51 42 56
15DNS305 1’’ 59 48 65
15DNS306 11/4’’ 69 - 65


1 Body High-density Forged Brass
2 Seats Pure PTFE (Polytetrafluoroethylene)
3 Ball Forged Brass/S.S.*
4 Body Cap Forged Brass
5 Stem Machined Brass Rod/S.S.*
6 O-ring EPDM 70 Shore
7 Gland Packing Pure PTFE (Polytetrafluoroethylene)
8 Gland Machined Brass Rod
9 Lever Handle Z.P. Steel Varnished, PVC Sleeve
10 Screw Nut Stainless Steel
11 T Handle Aluminum
12 Name Plate POM
13 Handle Screw Nickel-plated Steel
The thread, color of handle, materials, etc. can be customized.
