Product Description

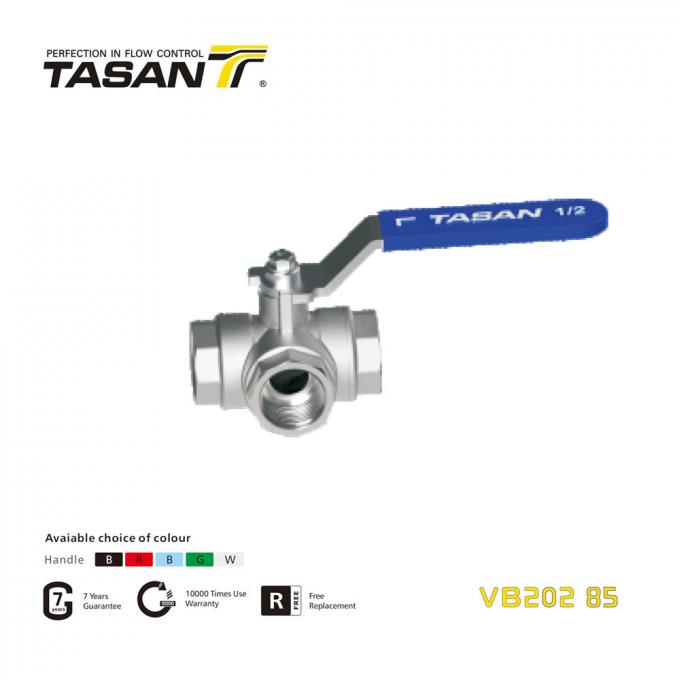

VB202 85 Brass Ball Valve With L Ball 3-Way ISO 228 Thread And 25Bar
● Descriptions:
Nickel-plated Forged brass body
Chrome-plated Machined brass/S.S. ball *
Available Size: 1/4''~2''
Pressure rating: 25Bar
Handle: Iron Or Steel Lever Handle
Working temperature Min./Max.: From -10 ℃ To +120 ℃ (from 14℉ To 248℉)
Opening/closing Test: 10,000 times
Threads: ISO 228「equivalent to DIN EN 10226-1 and BS21」
The thread, color of handle, materials, etc. can be customized.
| Part Code |
Size |
Working Prssuer Bar |
Pcs/Carton |
| VB20285N201 |
1/4'' |
25 |
120 |
| VB20285N202 |
3/8'' |
25 |
120 |
| VB20285N203 |
1/2'' |
25 |
80 |
| VB20285N204 |
3/4'' |
25 |
60 |
| VB20285N205 |
1'' |
25 |
40 |
| VB20285N206 |
11/4'' |
25 |
20 |
| VB20285N207 |
11/2'' |
25 |
12 |
| VB20285N208 |
2'' |
25 |
8 |
Details
Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by advanced high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by advanced high precision CNC machines.
Valve Ball: Smooth and wear resisting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, becomes not easily aging.
O-ring: EPDM & NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.
Handle Screw Nut: TASAN Professional-Antirust handles with S.S. handle screw
