Home / Product / Brass Ball Valve / 16bar 232Psi Brass Three Way Ball Valve With Strainer 1/2''~1'' 23X
  • detail of 16bar 232Psi Brass Three Way Ball Valve With Strainer 1/2''~1'' 23X
  • detail of 16bar 232Psi Brass Three Way Ball Valve With Strainer 1/2''~1'' 23X

16bar 232Psi Brass Three Way Ball Valve With Strainer 1/2''~1'' 23X

Product Details:
Place of Origin: China
Brand Name: TASAN
Certification: CE
Model Number: 23X

Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs Per Week
Contact Us    PDF Download

det1

Product Name: Brass Water Ball Valve With Strainer - Lever Handle Material: Brass
Port Size: 1/2"-1" Connection Type: Female X Female
Working Temperature Min./Max.: -10 ℃ To +120 ℃ (from 14℉ To 248℉) Pressure Rating:: 16bar (232 Psi)
Thread: ISO 228 Power: Manual
High Light: 232Psi Brass Three Way Ball Valve, 16bar Brass Three Way Ball Valve, 232Psi brass handle ball valve

det2

Product Description

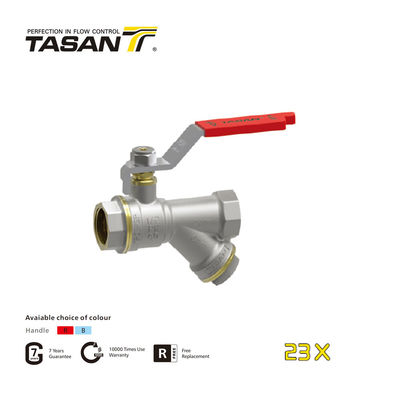

23X Brass Ball Valve Water Ball Valve With Strainer - Lever Handle
● Descriptions:
Nickel-plated Forged brass body
Chrome-plated Machined brass/S.S. ball *
TASAN Professional-Antirust handles with S.S. handle screw
Pressure rating:16bar (232 psi)
Working temperature Min./Max.:-10 ℃ to +120 ℃ (from 14℉ to 248℉)
Threads: ISO 228「equivalent to DIN EN 10226-1 and BS21」
*The thread, color of handle, materials, etc. can be customized.

● Details
​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Valve Ball: Smooth and wear resisiting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
Handle: Plated with decromet, the surface is coated against corrosion, the coating is thickened, the thickness is up to 1.3mm, comfortable using.
O-ring: EPDM & NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.
Stainless Steel Locknut: Internal design of anti-loose, can be used for long time.
Y Strainer Mesh​: Stainless steel 304

det3


16bar 232Psi Brass Three Way Ball Valve With Strainer 1/2''~1'' 23X 1
1 Body Forged Brass
2 Seats PTFE
3 Ball Forged Brass Rod/S.S.
4 Body Cap Forged Brass
5 Stem Forged Brass Rod/S.S.
6 O-ring EPDM 70 Shore
7 Gland Packing PTFE
8 Gland Machined Brass Rod
9 L Lever Handle Z.P. Steel Varnished, PVC Sleeve
10 L Screw Nut Stainless Steel
11 T T Handle Aluminium
12 T Handle Screw Zinc-plated Steel
13 T Name Plate POM
14 Filter Stainless Steel
15 Washer PTFE
16 Filter End Forged Brass
