Product Description

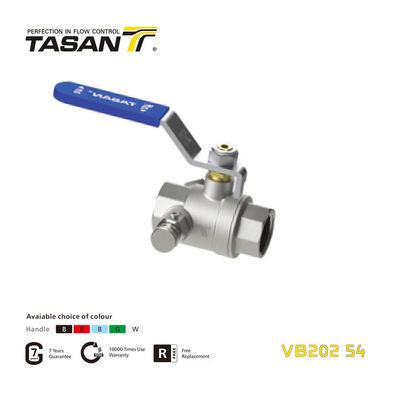

1/4 Inch To 2 Inch Copper Ball Valve 362.5 Psi Pressure Thread ISO228
Description
Size: 1/4 Inch To 2 Inch
CE Approved, DVGW approved, EN331 standard, full flow
Male/Male threads.
Body in nickel-plated brass.
Working temperatures: -20°C, 60°C.
Working pressure: 362.5 Psi
Parameters
Full flow Male x Female brass ball valves with Iron lever handle (different handle types).
The thread, color of handle, materials, etc. can be customized.
| Dimension mm |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
| A |
48.4 |
56 |
65 |
76 |
85 |
99 |
| B |
43.1 |
46.5 |
54.5 |
63 |
68 |
82.5 |
| C |
112.2 |
116 |
132.5 |
167.5 |
172.5 |
199.5 |
| D |
G1/2" |
G3/4" |
G1" |
G1-1/4" |
G1-1/2" |
G2" |
| E |
14 |
18 |
23 |
29 |
35.5 |
45.5 |
| PN |
16 |
25 |
25 |
25 |
25 |
25 |
Details of Brass Ball Valve
1, Copper Ball Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
2, Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
3, Copper Ball Valve Ball: Smooth and wear resisiting, with good sealing performance.
4, Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
5, Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
6, Handle of Copper Ball Valve: The surface is painted red against corrosion, comfortable using.
7, O-ring: NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.
